3D Video of Biomass to Biochar Pyrolysis Machine: The DOING Carbonization Equipment Process

The conversion of biomass to biochar is a thermochemical process in which biomass is heated at high temperature under oxygen-free conditions. This decomposes it into three main products: solid biochar, liquid bio-oil and syngas. DOING equipment can process a variety of biomass sources, such as sawdust, coconut shells, bamboo, palm shells, sludge, etc. Next, let's explore its process flow through 3D videos.

DOING carbonization equipment process flow

1. Raw material preparation

Dryer and crusher of DOING biomass pyrolysis machine

Biomass needs to be pre-treated. First, it must be dried to a moisture content of less than 20%, with an optimal moisture content of 15%. Then, the DOING machine crushes it to particles below 30 mm to ensure uniform heating during pyrolysis.

2. Entering the pyrolysis reactor

DOING biomass pyrolysis reactor

After the biomass is pretreated, it enters the oxygen-free pyrolysis reactor of the DOING through an automatic conveyor belt. As the biomass is gradually heated, it goes through two stages. During the 200-400°C preheating stage, the biomass will volatilize water and some volatile compounds will begin to escape. When the temperature rises to 400-600 °C, the main pyrolysis reaction begins, and the cellulose, hemicellulose and lignin in the biomass will decompose. In addition, the DOING machine is equipped with an advanced temperature control system, and the operator can accurately set the temperature according to the type of biomass and the desired end product.

3.Syngas recovery

DOING carbonization equipment

The DOING machine has the advantage of energy saving. The syngas produced during the pyrolysis process is recycled inside the machine. The syngas is guided to the combustion chamber for combustion, providing heat for the pyrolysis process, making the process more sustainable and cost-effective. In addition, the machine has a double-layer insulation structure, and the high-quality insulation material minimizes heat loss, thereby stably producing high-quality biochar.

4. Waste gas treatment

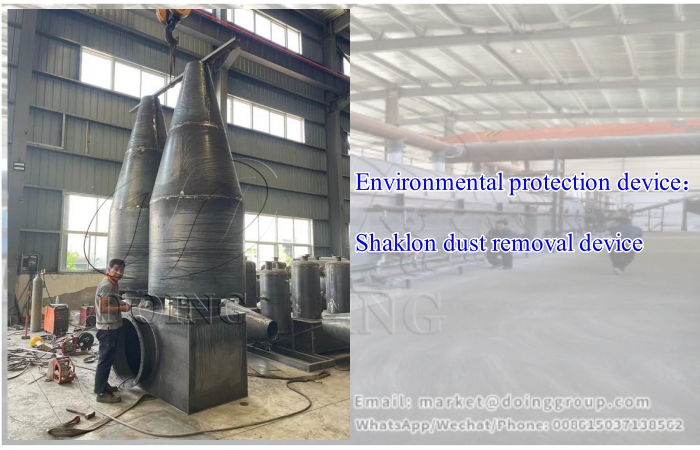

Shaklon dust removal device of biomass pyrolysis machine

The waste gas treatment system of the biochar pyrolysis equipment adopts the triple purification technology of "adsorption + combustion + washing": the honeycomb activated carbon first absorbs more than 95% of the harmful gases, and the catalytic combustion device then decomposes the residual waste gas at high temperature, and finally it is thoroughly cleaned by alkaline desulfurization and pulse dust removal. The whole set of industrial-grade equipment is equipped with a sealed design to ensure that the waste gas treatment is both efficient and environmentally friendly.

5. Biochar collection and post-processing

DOING Biochar briquette machine

After pyrolysis, the biochar is discharged from the pyrolysis chamber. First, the biochar will pass through a circulating water cooling device to prevent it from spontaneous combustion. After cooling, the biochar can be further processed and pressed into various shapes you want using a biochar compressor to improve its usability.

Products and applications

Final product of DOING biochar pyrolysis machine

1. Biochar: Biochar can be used as fuel for barbecue, metallurgy, etc. to provide a high-temperature heat source; it can also be made into activated carbon for water purification, air purification, and adsorption of impurities and odors.

2. Bio-oil: Refined bio-oil can provide fuel for engines/boilers or be used as a chemical raw material.

3. Synthesis gas: Synthesis gas can generate heat/electricity to power DOING equipment and form an energy cycle.

DOING biochar pyrolysis machine manufacturer

The above 3D video shows the process of biomass conversion into biochar in detail. If you want to know more about the biochar pyrolysis machine, please contact us and send us pictures of raw materials. Our project manager will provide you with the best biomass pyrolysis solution and quotations. You are also welcome to come to the factory for trial operation.
