Waste Tire Pyrolysis Plant

Waste tyre/tire to fuel oil pyrolysis plant

Waste Tire Pyrolysis Plant / Date:09-22-2016


tyre pyrolysis plant
Waste tyre/tire

How to recycle scrap tyre/tires into available energy? Now this is no longer a problem. The waste tyre/tire to fuel oil pyrolysis plant manufactured by Doing group can be used for recycling tyre/tire into fuel oil, carbon black and steel wire.
tyre to fuel oil
Waste tyre/tire to fuel oil pyrolysis plant


The whole waste tyre/tire to fuel oil pyrolysis plant is mainly composed of eleven parts, such as moving horizontal pyrolysis reactor, hot air circulation heating system, oil gas filter, spray cooling system, secondary fire retardant damper, strong spray dedusting system, oil gas recycling system, feeder system, discharging system, pressure and temperature multipoint monitoring system, central electric control system. Manufactured with high-quality materials and advanced technologies, the machine has the features of safety, energy saving and environmental protection.

Waste tyre/tire to fuel oil pyrolysis plant feature

pyrolysis plant
Waste tyre/tire to fuel oil pyrolysis plant
1.100% recycling of tyre wastage is achieved (No churn left after the process)
2.No chemical ingredients are used in process (environment friendly)
3.During and after the process; no soil, water or air pollution is observed.
4.Creates economically valuable products out of wastage tyres (These are an industrial product that have a good market value and demand)
5.The most cost-effective wastage tyre/tire pyrolysis technology in the world.
6.Raw material (wastage tyre/tire) is cheap and easy to provide. These are the by-products of tyre/tire production.
7.Each recycled ton of tyres preserves 10 tons of CO2 that is a major green house gas.
8.The process can be applied to all rubber based materials.

Waste tyre/tire to fuel oil pyrolysis plant working process

tire pyrolysis plant
            Waste tyre/tire to fuel oil pyrolysis plant working process
(1) Put the waste tyre/tires into reactor and make reactor rotate clockwise 0.4-0.8 r/min. Seal the feeding inlet door tightly and make sure there is no gas leakage.

(2) Heat the reactor by using coal, charcoal, fuel gas, wood etc. as heating materials. The reactor will be slowly heated, and when the temperature reach about 250℃, the oil gas will be formed.

(3) The oil gas coming out from the reactor then goes to condensing system and become liquid oil. The gas which can’t be liquefied under normal pressure will be designed to go back to combustion system through safety device. It can be recycled to heat the reactor as fuel, which will save energy for the whole working process.

(5) After finishing oil production, the temperature of the reactor will fall down, when the temperature falls down to 40℃, we can get carbon black and steel wire.
Why choose us?
tyre to fuel oil


Waste tyre/tire to fuel oil pyrolysis plant technical data


Technical parameter of waste tyre/tire to fuel oil pyrolysis plant
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste tyre/tire Waste tyre/tire Waste tyre/tire
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about waste tyre/tire to fuel oil pyrolysis plant
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m


Waste tyre/tire to fuel oil pyrolysis plant final product and application

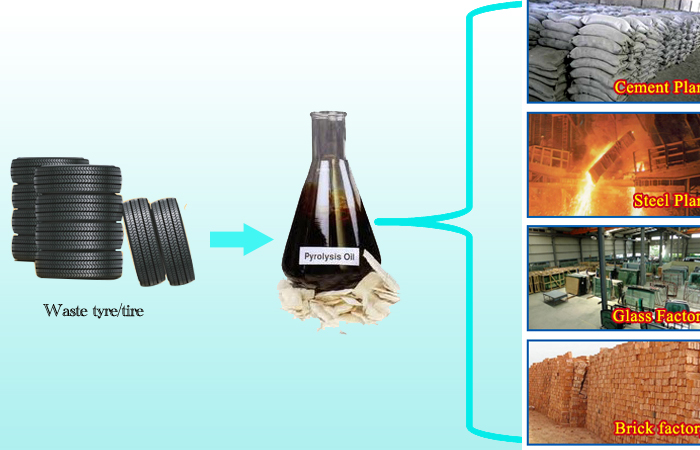

Fuel oil from waste tyre/tire to fuel oil pyrolysis plant


tire to fuel oil
Fuel oil  application
A.power plant factory
B.glass factory
C.cement factory
C.cement factory
E.boiler factory
G.central heating factory

Carbon black from waste tyre/tire to fuel oil pyrolysis plant


tyre to fuel oil
Carbon black application
A.electric cable jacketing
 B.conveyor ban
C.hose and doormat
 D.black nylon bag
 E.rubber additive
 F.automatic spare parts
G.heat isolation
