Copper wire recycling machine

Scrap wire stripping machine

Wire stripping machine is a kind of machinery used for recycling waste & scrap copper wire and cables, whose diameter should be below 25mm, Such as Auto electric wire, Motorcycle electric wire, Computer wire and other various miscellaneous material cables, communication cables, etc.

Features


wire stripping machine
Wire stripping machine

Wire stripping machine is a kind of machinery used for recycling waste & scrap copper wire and cables, whose diameter should be below 25mm, Such as Auto electric wire, Motorcycle electric wire, Computer wire and other various miscellaneous material cables, communication cables, etc.

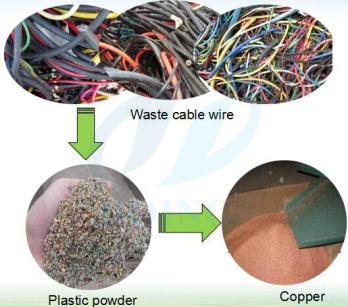

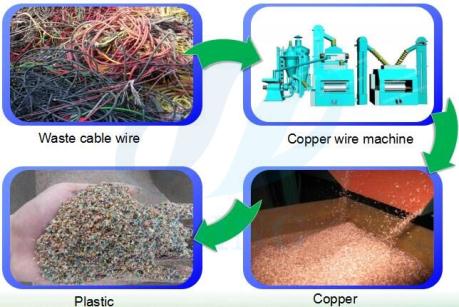

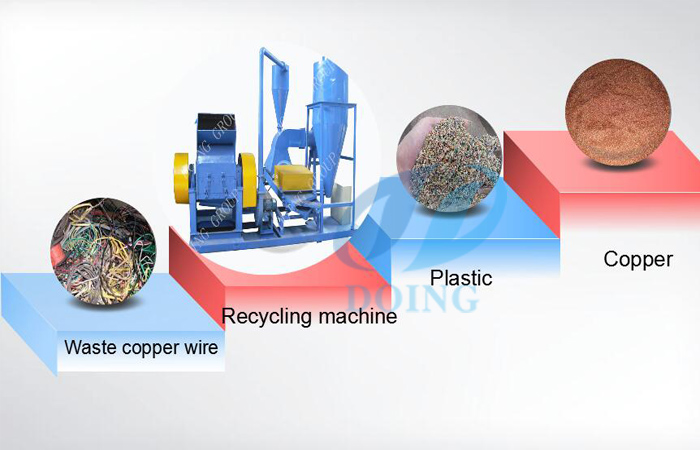

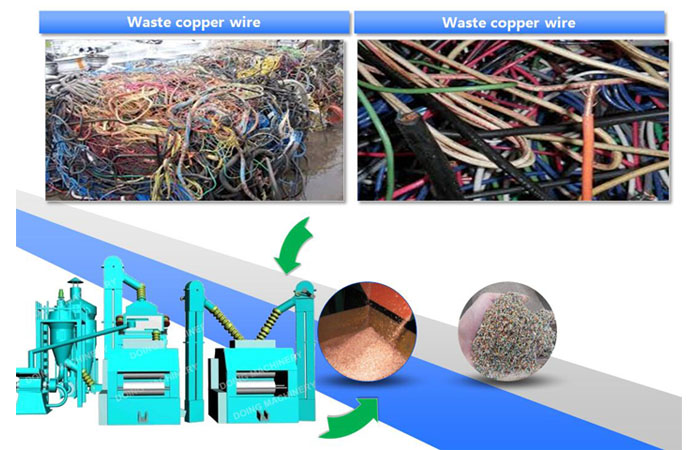

The scrap wire have been shattered into particles through the crusher, then the particles by belt conveyor transport into the separating machine, Then we can get pure copper particles and plastic particles.
wire stripping machine
Wire stripping machine
Wire stripping machine feature

1.The automation degree of the whole line is high, it is easy to operate.
2.During the process of sorting, PE, PVC and copper are recycled with 99%.
And the separating copper has a purity up to 99%.
3.No pollution and Energy saving.
4.Waste wire stripping machine has a high degree of automation and is suited for customers who want efficient wire stirpping machine with a minimum of manpower.

Technical Data

Wire stripping machine technical data
wire stripping machine
Wire stripping machine


Item Model Capacity(kg/h) Power(Kw) Size (m)(L*W*H) Weight(T) Remark
1 DY-400 100-200 28.5 3.5×1.5×3.0 1.8
2 DY-600 300-500 36.5 4.0×1.7×3.0 3.0
3 DY-800 500-800 90.0 4.5×1.5×4.2 7.7 Doubling crushing system
4 DY-1000 800-1000 104.2 4.8×1.8×4.2 9.4 Doubling crushing system

Application

Wire stripping machine working principle

wire stripping machine
Wire stripping machine working principle

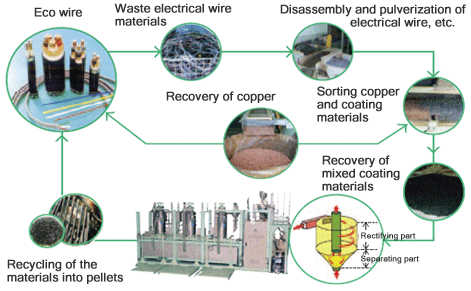

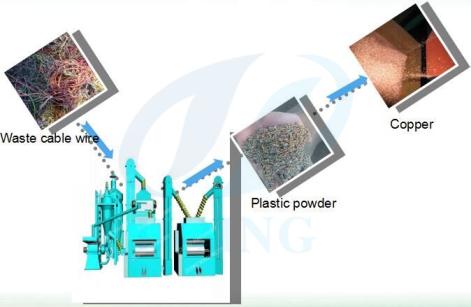

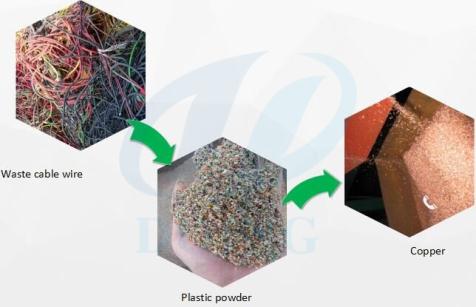

The cable wires raw materials will be firstly put into the crusher, after crushing, our pulse air separator machine will make the copper and plastic suspended on the screen. Then it can separate the copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. This model system including the first crusher, pulse air separator, dust and fiber collection system and high voltage electrostatic separator。
