Manufacture of Scrap copper cable granulator machine_

Scrap copper cable granulator machine

Features
Technical Data
Application

Features

Product introction of copper cable granulator machine

Copper cable granulator machine

Copper cable granulator machine, also called scrap electric wire and cable recycling equipment, copper wire separator, aluminium wire separator or electric wire reparator, and also can be used as PCB recycling machine, Printed Circuit Boards recycling equipment.Copper cable granulator machine is a kind of environmental protection machine used to recyle waste electric wire, copper wire, aluminium wire, metallic composite wires and sheathed lines.

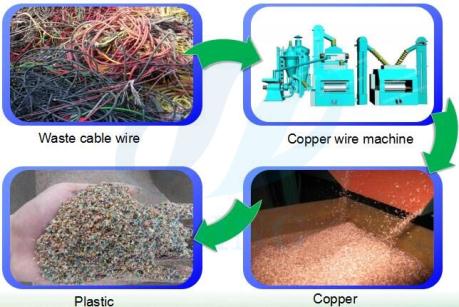

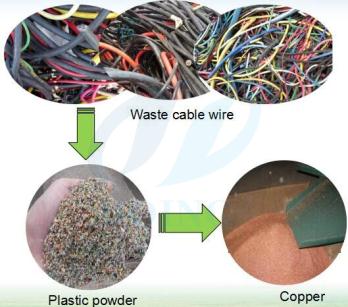

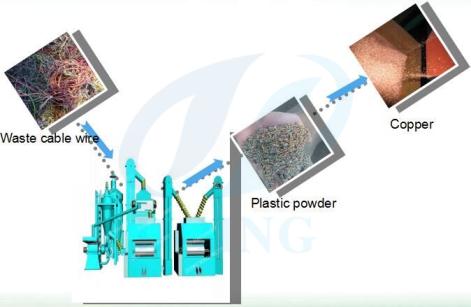

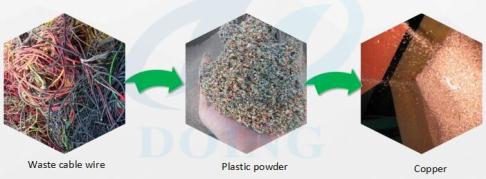

Through crude crushing,iron removal,fine crushing, gravity separation, electrostatic separation process to make completely dry and physical separation of scrap wires to get pure plastics and metal for double recycling and high benefit. Equipped with the electrostatic separator, it can make metal recovery rate get close to 100%.

Technical Data

Technical data of copper cable granulator machine

Item	Model	Capacity(kg/h)	Power(Kw)	Size (m)(LWH)	Weight(T)	Remark
1	DY-400	100-200	28.5	3.5×1.5×3.0	1.8
2	DY-600	300-500	36.5	4.0×1.7×3.0	3.0
3	DY-800	500-800	90.0	4.5×1.5×4.2	7.7	Doubling crushing system
4	DY-1000	800-1000	104.2	4.8×1.8×4.2	9.4	Doubling crushing system

Application

Application of copper cable granulator machine

Raw material of copper wire granulator machine

For our copper cable granulator machine, please check the available raw materials as below:
- All kinds of scrap wires, copper wire, aluminium wire, such as automobile electric line, motorcycle electric line, storage battery electric line, waste household appliance disassembly electric line, electromechanical equipment disassembly electric line, computer cable, telephone wire, cable TV line, communication cable and other scrap wires which are difficult to recycle, circuit board, copper-clad plate, etc

Copper wire recycling machine

Scrap copper cable granulator machine

Features

Technical Data

Application

Leave A Message about Scrap copper cable granulator machine
